Roller chains with straight side plate ( B series ) 1

Roller chains with straight side plate ( B series ) 1

Hangzhou qianjiang chain industries Co.,Ltd.

0
Views: 2,689

Product Details



? ? ? ? ? DIN/ISO ? Chain NO. Pith ? Roller diameter ? ? ? Width? ? ? ? ? ?between? ? ? ? ? ? inner? ? ? ? ?plates ? ? ? ?Pin? ? ? ?diameter Pin length ? ? ? ? ? inner? ? ? ? ? ? ? ? ?plate? ? ? ? ? ?depth? ?? ?Plate? ? ?thickness ? ?Ultimate? ? ? ? tensile? ? ? ? strength?? Average tensile? strength? Weight? ???? per? ? ?????? meter? ? ?

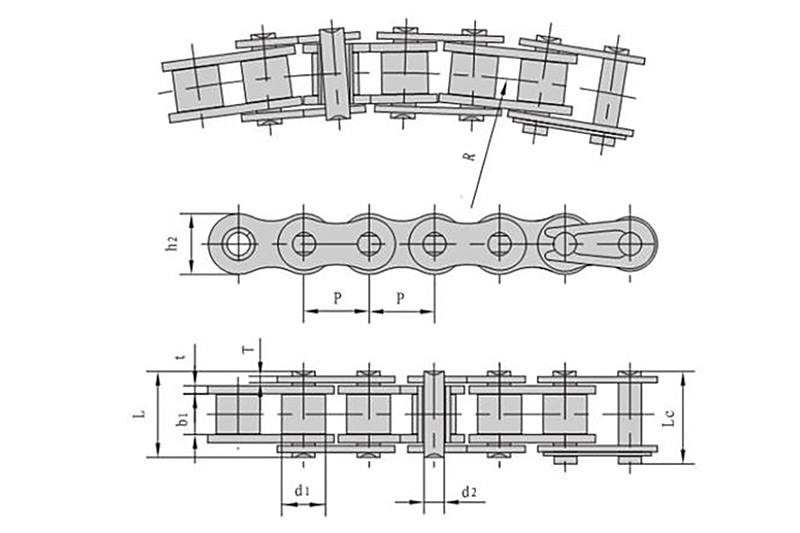

P d1 max b1 min d2 max L max Lc max h2 max T max Q min Q0 q
mm mm mm mm mm mm mm mm kN/lbf kN kg/m
C08B-1 12.700? 8.51? 7.75? 4.45? 16.7? 18.2 11.8? 1.60? 18.0/4091 19.5? 0.80?
C10B-1 15.875? 10.16? 9.65? 5.08? 19.5? 20.9? 14.7? 1.70? 22.4/5091 27.9? 1.06?
C12B-1 19.050? 12.07? 11.68? 5.72? 22.5? 25.2 16.0? 1.85? 29.0/6591 32.2? 1.32?
C16B-1 25.400? 15.88? 17.02? 8.28 36.1? 39.1? 21.0/24.0 4.15/3.1 60.0/13636 72.8? 3.08/3.49
C20B-1 31.750? 19.05? 19.56? 10.19? 41.3? 45.0? 26.4? 1.5/3.5 95.0/21591 106.7? 4.16?
C24B-1 38.100? 25.40? 25.40? 14.63? 53.4? 57.8? 33.2? 6.0/4.8 160.0/36364 178.0? 7.47?
C28B-1 44.450? 27.94? 30.99? 15.90? 65.1? 69.5? 36.7 7.5/6.0 200.0/45455? 222.0? 9.90?
C32B-1 50.800? 29.21? 30.99? 17.81 66.0? 71.0? 42.0? 7.0/6.0 250.0/56818 277.5 10.45?
